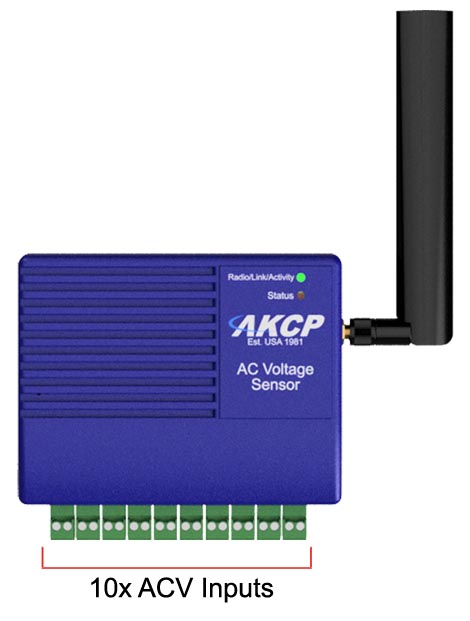

Monitor up to 10x AC Voltage circuits over a Wireless Tunnel™ network. Check circuits are energized, and receive instant alerts when power is off. The sensor will detect the absence or presence of AC Voltage on each input. Works with all Wireless Tunnel™ Gateways.
| Dimension | 86mm X 111mm X 63mm |
| Mounting | Desktop, Wallmount, Din rail, Magnetic |
| Power source: | Internal removable AA batteries (non-rechargeable) or via microUSB port |
| Power Consumption: | Average 12 mWatt |
| Status Indication | LED indication for Connectivity Led indication for Status |
| Components | Manufactured using highly integrated, low power surface mount technology to ensure long term reliability. |
| Operating Environment | Temperature : Min. -35° C – Max.80° C Humidity: Min. 20% – Max. 80% (Non-Condensing) |
| LoRa (R) Radio | – EU868 : 863~868Mhz Max TX Power +14dBm Duty Cycle 1% – US915: 903~915Mhz Max TX Power +17dBm – AS923: 920~925Mhz Max TX Power +14dBm Duty Cycle 1% – KR920 (Korea): 922~923Mhz Max TX Power +14dBm Duty Cycle 1% – IL917 (Israel): 915~917Mhz Max TX Power +14dBm Duty Cycle 1% |
| Certification | FCC Part15C, CE EN300220-2 |
| Dry Contact | |
| 10x Discrete Dry contact Inputs | |
| Input | Switch type dry contact input: open or close Edge counters Isolated 110-250 VAC |
| Important Note: | Note 1: All inputs are not isolated, they all share the same ground. Care should be taken grounding when connecting the WT-ACV10 inputs Note 2: don’t apply any voltage to the dry contact inputs |
