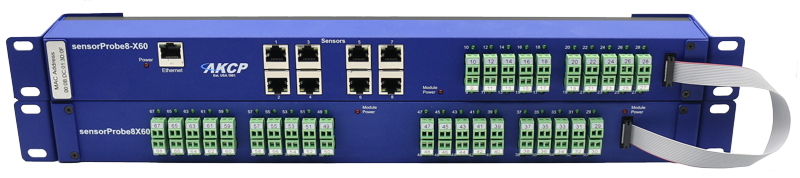

At the core of the sensorProbe8-X60 is the sensorProbe8, which is then married with 60 Dry Contact System. This offers support for remote monitoring and management of a wide range of external devices.
The sensorProbe8-X60 system enables connection and monitoring of devices like HVAC Systems, Security Equipment, UPS, Generators, Industrial Equipment and much more.
The sensorProbe8-X60 embedded web server makes the addition of these devices easy. The sensorProbe8-X60 comes with 8 autoSense Intelligent sensor ports, for connecting a wide range of our intelligent sensors.
An additional 60x 2-wire dry contact ports are provided giving a total of up to 68 dry contact ports. The specially designed 2 wire dry contact ports are easy to use and allow you to make your own dry contact cables quickly. The sensorProbe8-X60 is a completely embedded host. It is equipped with a TCP/IP stack, internal web Server, e-mail and Full SNMP functionality.
sensorProbe8-X60 safeguards your infrastructure, resources and investment from external disaster before it happens.
Specifications
| Dimension | 88 (W) x 44 (H) low profile design |
| Mounting | 2U Rack Mount Standard Rack mount brackets included Compatible with AKCP’s DIN and rack mount trays |
| Power | External 5.5V 3A Power Adapter Input Voltage and Current ratings : 100V~240V – 0.22A
Optional : |
| Power Consumption | Typical : 2.90 Watt, 0.32A |
| Status Indication | LED indication for power LED for network connectivity LED for sensor online and threshold status LED for dry contact status |
| Components | Manufactured using highly integrated, low power surface mount technology to ensure long term reliability. |
| Operating Environment | Temperature : Min. -35° C – Max.80° C Humidity: Min. 20% – Max. 80% (Non-Condensing) |
| MTBF | 1,400,000 Hours based on field experience with sensorProbe units. |

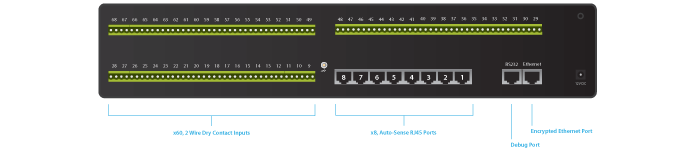

| Inputs | 8x Sensor Ports for connecting AKCP sensors* 60x 2 Wire dry contacts (Input only up to 5VDC and up to 40VDC in opto isolated mode using internal jumper setting) 1x 10/100 Mbps Ethernet Port |
| Outputs | Configurable output signals (0VDC/5VDC) on any of the 8 RJ-45 sensor ports |
Explore all the features of our best selling sensorProbe8-X60 over the internet using real, live data! No downloads or installations are required. Simply click on the ‘sensorProbe8-X60 Demo’ link below to gain quick and free access to AKCP’s sensorProbe8-X60.
