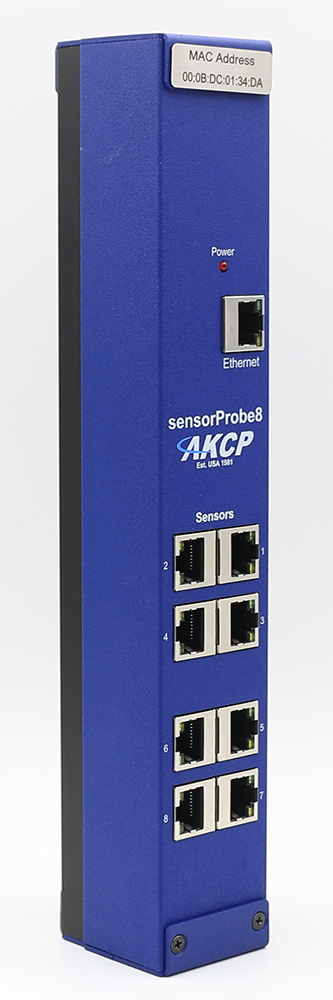

The sensorProbe8 (SP8) is a completely embedded host with a proprietary Linux like OS which includes TCP/IP stack, a built in web-server and full Email and SNMP functionality. It allows you to connect and monitor up to 8 AKCP sensors.
Based on years of Industry Experience it’s ready to run right out of the box, simply assign the IP address and connect to the embedded web server.
The sensorProbe8 can record all events in its database with a time stamp of when the sensor alarm was raised and the action taken place. A standalone product with no external software dependencies, the sensorProbe8 gives you the very best for your monitoring needs.
It has 8 auto-sense intelligent sensor ports which work with a wide range of AKCP intelligent sensors. It can use any combination of sensors to monitor temperature, humidity, water leakage, airflow, security and even control relays.
AKCP sensors can also be used to detect AC voltage and measure DC voltage. Our sensors include an integrated data collection and graphing package to spot trends in the airflow, temperature and humidity.
sensorProbe8 safeguards your infrastructure, resources and investment from external disaster before it happens.
Specifications
| Dimension | 44 (W) x 44 (H) low profile design |

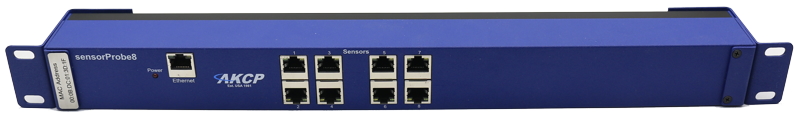

| Mounting | 1U Rack Mount Standard Rack mount brackets included Compatible with AKCP’s DIN and rack mount trays |
| Power | External 5.5V 3A Power Adapter Optional : |
| Power Consumption | Typical : 1.12Watt, 0.13A |
| Status Indication | LED indication for power LED for network connectivity LED for sensor online and threshold status |
| Components | Manufactured using highly integrated, low power surface mount technology to ensure long term reliability. |
| Operating Environment | Temperature : Min. -35° C – Max.80° C Humidity: Min. 20% – Max. 80% (Non-Condensing) |
| MTBF | 1,400,000 Hours based on field experience with sensorProbe units. |
| Inputs | 8x Sensor Ports for connecting AKCP sensors 1x 10/100 Mbps Ethernet Port |
| Outputs | Configurable output signals (0VDC/5VDC) on any of the 8 RJ-45 sensor ports |
Explore all the features of our best selling sensorProbe8 over the internet using real, live data! No downloads or installations are required. Simply click on the ‘sensorProbe8 Demo’ link below to gain quick and free access to AKCP’s sensorProbe8.
