sensorProbe2+
Monitor up to 4 AKCP Intelligent Sensors, Thermal Maps and RFID Swing Handles
Monitor up to 4 AKCP Intelligent Sensors, Thermal Maps and RFID Swing Handles
The world’s best selling environmental monitoring platform has been upgraded. Start with a basic package to enable monitoring over a single cabinet. Expand to a full data center monitoring solution, one cabinet at a time. Every computer rack monitored using AKCPro Server. sensorProbe2+ with Modbus RS485 port the sensorProbe2+ becomes a Modbus to SNMP gateway.
SP2+ is compatible with all AKCP sensors, making it an extremely versatile and cost-effective remote monitoring solution. Suitable for small data center temperature monitoring, refrigerator temperature monitoring.
Environmental Monitoring Sensors
Environmental Monitoring is important to daily operations and health of equipment. Deploy temperature sensors for data center monitoring and server rooms. Monitor water leaks, power sensors and much more.
Security Sensors
RFID cabinet locks, door contacts and motion detectors will keep you in tune with the security situation at your sites down to cabinet level. Control who can access cabinets and when, centrally managed and monitored through AKCP Pro Server.
Power Sensors
AC Voltage sensor, DC voltmeters, sensor-controlled relays and power metering can all be done on the SP2+
Specialized Sensors
Tank Level Sensors can monitor for liquid levels in fuel tanks, oil storage, chemical tanks and so on. Any tank up to 2 meters in depth can be monitored. Alarms generated when levels drop to critical levels, making sure you can re-fill with sufficient notice. Other specialized sensors include the key switch override, to disable notifications while maintenance work is being performed, and a programmable LCD sensor display.

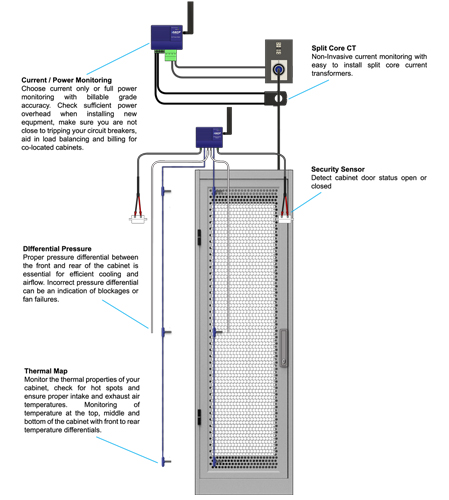

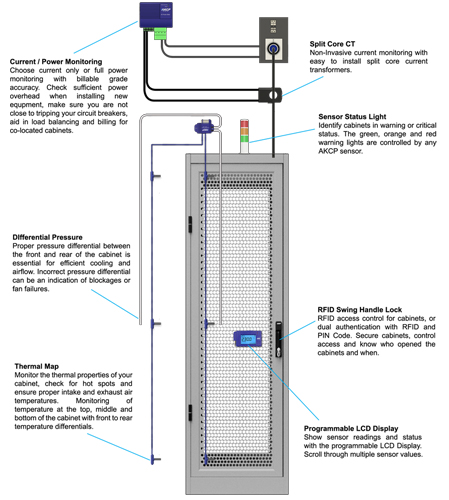

Both wired and wireless solutions for creating your own intelligent racks. Monitor temperature, △T, humidity, differential pressure, power, control access and more. Fully SNMP compliant, monitor from your existing NMS or using our free DCIM AKCPro Server.
Connect sensors to sensorProbeX+ base units.
UP to 100 HPWS™ sensors on a single wireless gateway.

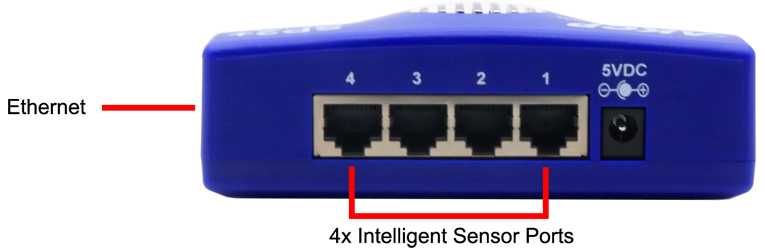

| Sensor Ports | 4 RJ-45 Sensor Ports for connecting AKCP Autosense Sensors Up to 20 Dry Contact Input and Output (0VDC/5VDC)
NOTE: SP2+ ships with 2 ports enabled by default. the additional 2 ports can be unlocked with part number 4PUN |
| Mounting | 0U rack-mountable Compatible with AKCP’s DIN Rail Clips |
| Status Indication | LED indication for power LED for network connectivity LED for sensor online and threshold status Internal Buzzer alarm |
| Components | Manufactured using highly integrated, low power, surface mount technology to ensure long term reliability. |
| MTBF | 1,400,000 Hours |
| Connectivity | Optional Internal Cellular Modem (EU / US frequencies available). Includes External Antenna |
| Optional Expansion Capabilities | Expansion port uses 1 sensor port Connect up to 4 Cabinet Control Units |
| Dimensions | Size : 4.5″ x 2.5″ x 1.25″ Weight : 0.3 Kg |
| Power Requirements | Voltage : 5 VDC, 3Amp (Including Optional Modem)
Optional PoE IEEE 802.3af |
| Operating Environment | Temperature: Min. -35° C – Max.80° C Humidity: Min. 20% – Max. 80% (Non-Condensing) |
Explore all the features of our best selling sensorProbe2+ over the internet using real, live data! No downloads or installations are required. Simply click on the ‘sensorProbe2+ Demo’ link below to gain quick and free access to AKCP’s sensorProbe2+ and select the Viewer account to log in. Launch sensorProbe2+ Demo
