sensorProbe2
Simple, Accurate and Rugged, sensorProbe2 is a low cost computer room temperature monitor.
The SP2 is an SNMP-enabled and Web-Based Environmental Monitoring Device.
- Product Code: SP2
Simple, Accurate and Rugged, sensorProbe2 is a low cost computer room temperature monitor.
The SP2 is an SNMP-enabled and Web-Based Environmental Monitoring Device.
The sensorProbe2 DC, offers a low cost alternative for dry contact monitoring. The 10 dry contact option gives the sensorProbe2DC the ability to have up to 5 dry contact inputs per RJ-45 port, giving a total maximum possible inputs of 10, by utilizing both of the RJ-45 sensor ports.
To unlock the unit for using this option you will need to purchase in addition to a standard sensorProbe2 a Dry Contact Upgrade (DCUPGSP2).
The 10 dry contact option requires in addition a special dry-contact cable which has 5 dry-contact input connectors, which can be plugged into any of the 2 autosense RJ-45 ports. This cable comes in 15, 60 and 100 feet.
The dry-contact ports can be used to monitor any dry-contact inputs, just like the normal autosense dry-contact ports, but, these ports can only be set to operate in the input mode. These additional sensors are labeled as ports 3 to 12.
The sensorProbe2 is designed to run for years non-stop. Our simple port system system allows you to setup the sensorProbe2 within minutes.
Specifications
| Dimension | Size 4.5″ x 2.5″ x 1.25″ Weight : 0.3 Kg |
| Mounting | 0u rack-mount, or wall hanging |
| Power | External 5.5V 3A Power Adapter Input Voltage and Current ratings : 100V~240V – 0.22AOptional : PoE (PoE is IEEE 802.3af compliant) |
| Power Consumption | Typical 1.125 Watt, 0.15A |
| Status Indication | LED indication for power LED for network connectivity LED for sensor online and threshold status LED for output online and power output status |
| Components | Manufactured using highly integrated, low power surface mount technology to ensure long term reliability. |
| Operating Environment | Temperature : Min. -35° C – Max.80° C Humidity: Min. 20% – Max. 80% (Non-Condensing) |
| MTBF | 1,400,000 Hours based on field experience with sensorProbe units. |
| Inputs | 2x Sensor Ports for connecting AKCP sensors (Up to 10 dry contacts) 1x 10/100 Mbps Ethernet Port |
| Outputs | Configurable output signals (0VDC/5VDC) on any of the 2 RJ-45 sensor ports |
| Licensing | |
| 10 Dry Contact : DCUPGSP2 | 10 dry contact input sensor (2x 5 Dry Contacts) |

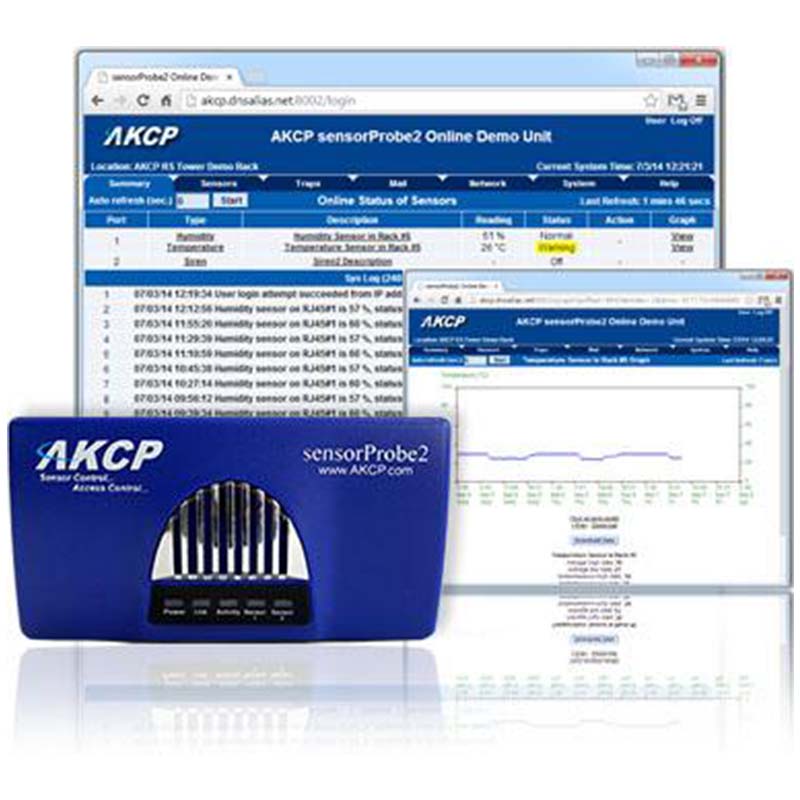

We let you try before you buy!
Explore all the features of our best-selling sensorProbe2 over the internet using real, live data! No downloads or
installations are required. Simply click on the ‘sensorProbe2 Demo’ link below to gain quick and free access to AKCP’s
sensorProbe2.
cess to AKCP’s sensorProbe2.
