Security Sensor
Secure your doors and windows

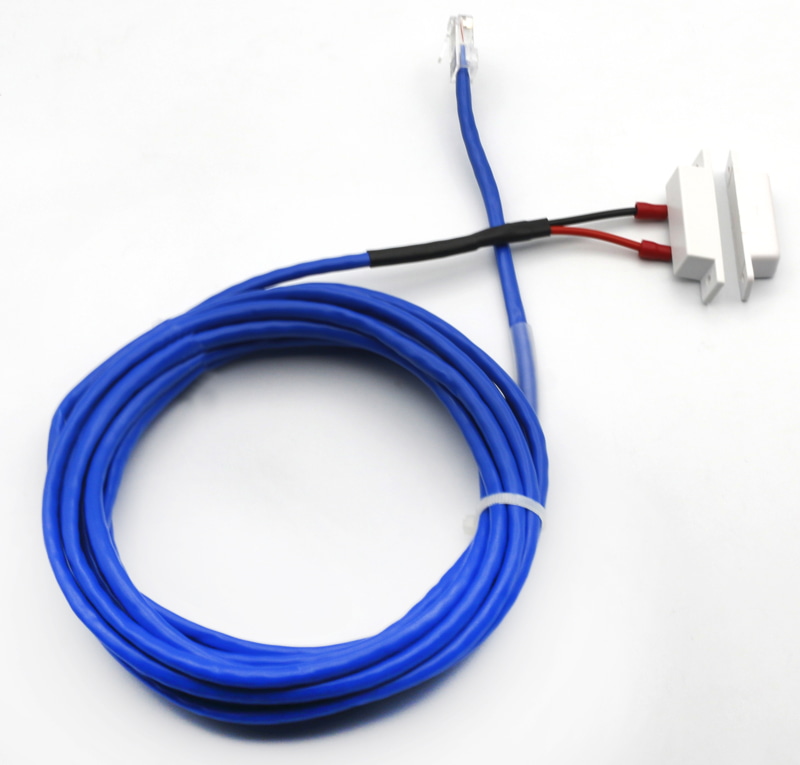

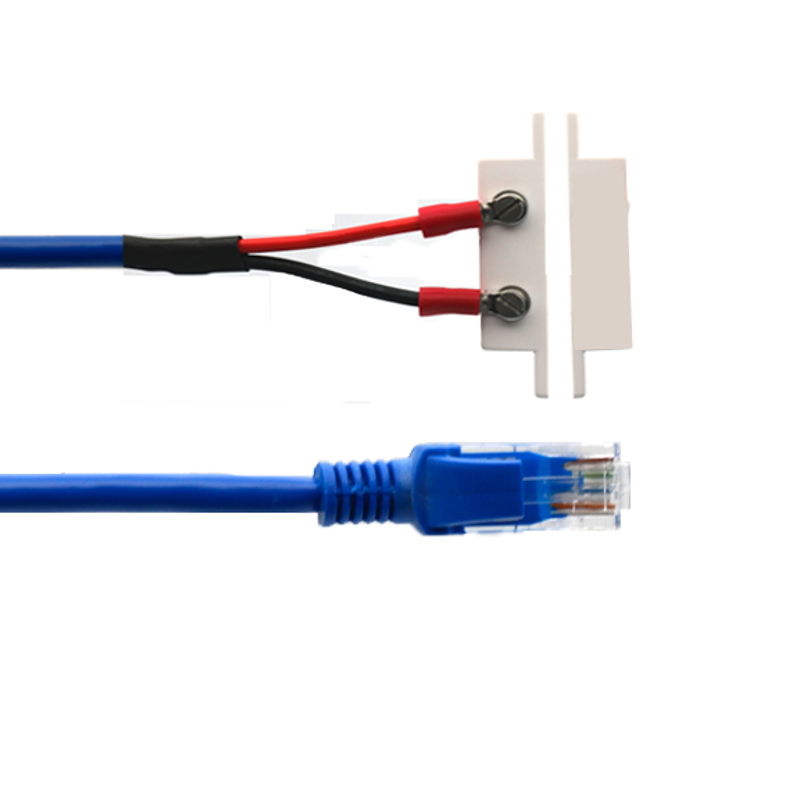

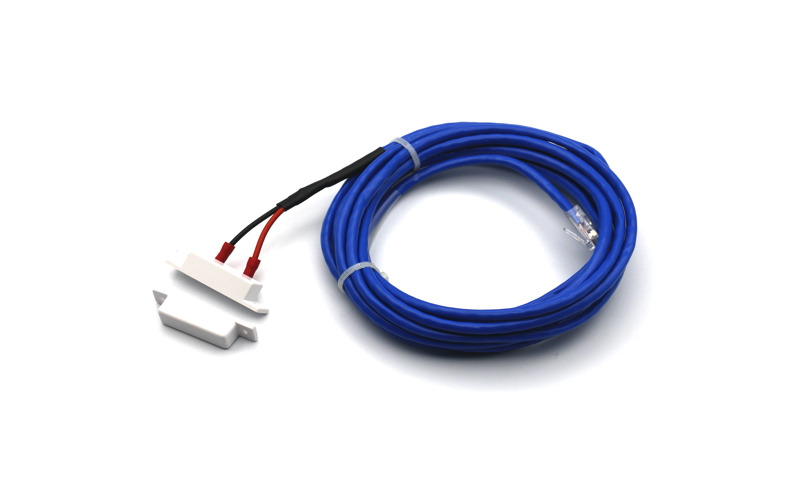

The Security sensor is a magnetic on/off switch for monitoring doors and windows.
- Product Code: SSXX
- MSRP Price:
- Optional Lengths Available
The Security sensor is a magnetic on/off switch for monitoring doors and windows.
The Security sensor is a magnetic on/off switch for monitoring doors and windows. When the door, or window, opens the input signal is detected by the sensorProbe or securityProbe base unit. Alerts can then be generate to notify you even including images captured from an attached camera to give you instant visual feedback on the situation.
They are active switches that close when one half of the sensor is in close proximity to its mate. When the two sensor pairs are moved apart from each other they open. The base unit senses closure and opening of these switches.
Specifications
| Measurement Range | Alarm or Normal |
| Sensor Type | Open / Closed magnetic switch |
| Input Measurement Rate | Multiple readings every second |
| Normal input state is settable under software | |
| Features | Unlimited number can be wired in series using one Port No reasonable limitation on distance from base unit |
| Interface | |
| Communications Cable | RJ-45 jack to sensor using UTP Cat 5 wire |
| Communications Cable Max. length | 1000 Ft (305m) with approved low capacitance shielded cable or UTP |
| Power Source | Powered by the sensorProbe2 or sensorProbe2+. No additional power needed |
| Full autosense including disconnect alarm | |
| Power Consumption | Typical 8.95 mWatt, 1.79mA |
| Sensor count | 1 |
