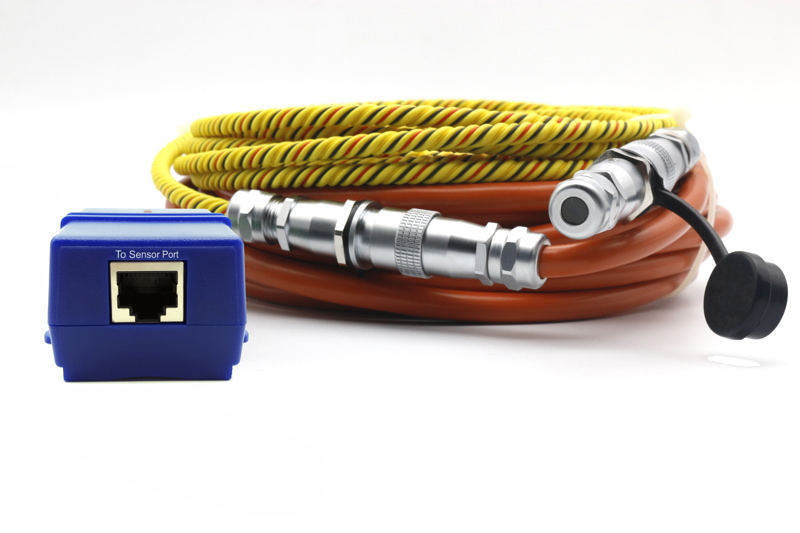

Detect water leaks over a large area
Ideal for use in basements and under false floors and roof spaces, the Rope Water sensor can cover a large area.
With the ropeWater sensor you can protect your essential equipment from potentially harmful water damage. Designed and manufactured by AKCP it forms an integral part of your solution for data center monitoring.
Ideal for use in basements and under false floors and roof spaces, the Rope Water sensor can cover a large area. Combined with any of our remote monitoring base units, or wireless tunnel sensors, it will give you advance notice of any water leaks or flooding.
The sensor will retain it’s error condition until it is read via an SNMP get. Therefore if the sensor encounters a critical condition at anytime it will report that condition before it returns to a normal state.
Specifications
| Measurement Range | Wet or Dry |
| Sensor Type | Open/Closed contact input switch |
| Measurement Rate | Multiple readings every second |
| Able to detect the presence or non-presence of water | |
| Indication | LED for Status |
| Operating Temperature | -20 °C~60 °C 4 °F~140 °F |
| Pull Force Limit | Not to exceed 50 lb |
| Bend Radius | 2 in. (50 mm) minimum |
| Pressure | Loads greater than 20 lb (9 kg) per linear inch at 20°C (68°F) may immediately trigger an alarm |
| Interface | |
| Communications Cable | RJ-45 jack to sensor using UTP Cat 5 wire |
| Communications Cable Max. length | The Rope Water Sensor can be extended from the RJ-45 Intelligent Sensor ports on the base units up to 100 feet, or 30 meters using standard CAT5/6 LAN cable. Comes fully assembled including the Water sensing rope, the non-sensing cable that connects the rope to the sensing module and the main sensing module that connects via CAT5 LAN cable to the sensorProbe / securityProbe 5E. Sensing rope cable can be pre-ordered from a 10 feet minimum to any custom run length of up to 165 feet or 50 meters.
Non-sensing cable comes in a standard 20 feet run length. |
| Power Source | Powered by the controller unit. No additional power needed |
| Full autosense including disconnect alarm | |
| Power Consumption | Typical 125 mWatt, 25 mA |
| Dimensions | 56 x 55 x 33.3 mm |
| Mounting | DIN rail mounting Screw mounting |
| Important Note | AKCP does not recommend the ropeWater Sensor to be placed on a conductive surface. |
| Sensor count | 1 |
