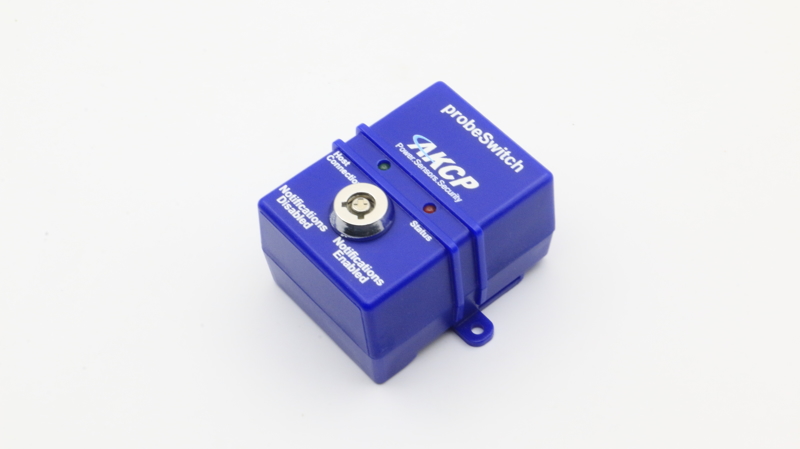

This product can be connected to the securityProbe Series as a dry contact and once set up is ready to work.
Carry out maintenance on areas that would normally trigger unnecessary multiple notifications. With this new product it is now possible to turn off all notifications with a simple turn of a key switch.
This product can be connected to the securityProbe Series as a dry contact and once set up is ready to work. Once connected there is no need to disable the notifications using the web interface, your maintenance engineer simply turns the switch connected to the unit, to turn off the notifications and when they have completed their work just switch the notifications back on.
Specifications
| Measurement Range | Alarm or Normal |
| Sensor Type | Open / Closed Key Lock Switch |
| Indicator | LED for connection LED for status |
| Interface | |

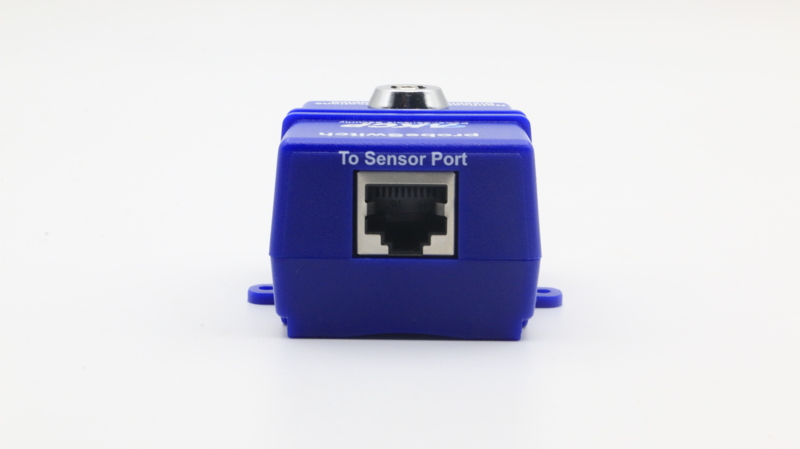

| Communications Cable | RJ-45 jack to sensor using UTP Cat 5 wire |
| Communications Cable Max. length | 1000 Ft (305m) with approved low capacitance shielded cable or UTP |
| Power Source | Powered by the base unit. No additional power needed |
| Full autosense including disconnect alarm | |
| Dimensions | 56 x 55 x 33.3 mm |
| Mounting | DIN rail mounting Screw mounting |
| Important Note | * Auto-sensed as Dry Contact * Supported on securityProbe series only |
OID’s for probeSwitch
probeSwitch Dry Contact Sensor OID is:1.3.6.1.4.1.3854.1.2.2.1.18.1.3.X
