The AKCP Power Monitor Sensor gives vital information and allows you to remotely monitor power eliminating the need for manual power audits as well as providing immediate alerts to potential problems. The AKCP Power Monitor Sensor is specifically designed to be used with AKCP’s sensorProbe+ and securityProbe base units.
It has been integrated into the sensorProbe+ and securityProbe’s web interface with its own “Power Management” menu, allowing multiple three-phase and single phase Power Monitor Sensors to be set up on a single sensorProbe+ or securityProbe depending on which readings are required. Please check the sensorProbe+ Modbus manual or the PMS manuals on our website for more detailed information on this. Power meter readings can also be used with the sensorProbe+ and AKCPro Server live PUE calculations that analyze the efficiency of power usage in your data center. Data collected over time using the Power Monitor sensor can also be viewed using the built in graphing tool. Combining this durable Power Monitor Sensor with the sensorProbe+ and securityProbe creates an IP-enabled power monitoring capable of monitoring / measuring :
- Phase Line Voltages
- Current
- Power Factor
- Active Energy
- Active Power

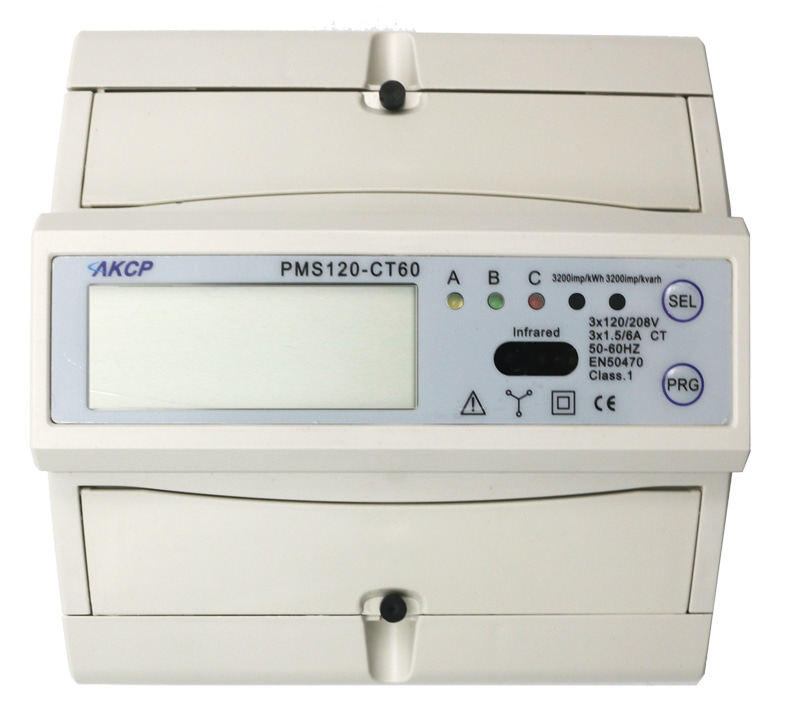

This four-wire sensor is encased in sturdy white plastic and mounts on a 35mm DIN rail. Order it for 110 or 220 power supplies. It functions with single- or three-phase circuits, and meets international standards for active and reactive energy – IEC 62053-21 and IEC 62053-23, respectively. Note: Installation should be performed by licensed electricians familiar with applicable codes and regulations.
Specifications
| | Single Phase Meter | Three Phase Meter | Three Phase Meter – CT Type |
| Voltage(V) |
| Rated Voltage (Un) | 230 VAC | 230/400V AC (3~) | 230/400V AC (3~) |
| Voltage range | 0.7~1.3Un | 161/279 – 300/520V AC (3~) | 161/279 – 300/520V AC (3~) |
| Current(A) |
| Basic current (lb) | 10A | 10A | 1.5A |
| Maximum current | 100A | 100A | 6A |
| Operational Current Range | 0.4% Ib- lmax | 0.4% Ib- lmax | 0.4% Ib- lmax |
| Over Current Withstand | 30Imax for 0.01s | 30Imax for 0.01s | 30Imax for 0.01s |
| Internal Power Consumption | ≤2W / 10VA | ≤2W / 10VA per phase | ≤2W / 10VA per phase |
| Frequency(Hz) | 50～60Hz ±10% | 50Hz ±10% | 50Hz ±10% |
| Standards | IEC 62053-21 | IEC 62053-21 | IEC 62053-21 |
| Temperature range(°C) |
| Operating Temperature | -10°C – +50°C | -10°C – +50°C | -10°C – +50°C |
| Operating Humidity | ≤ 75% | ≤ 75% | ≤ 75% |
| Accuracy Class |
| Voltage | ±0.5% | ±0.5% | ±0.5% |
| Amps | ±0.5% | ±0.5% | ±0.5% |
| Frequency (Hz) | ±0.2% | ±0.2% | ±0.2% |
| Communication |
| Type | RS485 | RS485 | RS485 |
| Standard | Modbus | Modbus | Modbus |

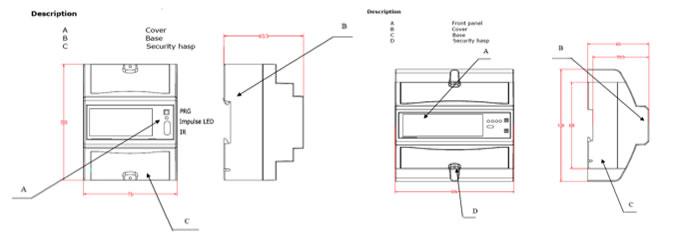

| Dimensions(L*W*H) (cm) |
| Height | 100 mm | 130 mm | 130 mm |
| Width | 76 mm | 126 mm | 126 mm |
| Depth | 65.5 mm | 65 mm | 65 mm |
| Max Diameter Cable | 11.5 mm | | |
| Weight | 0.35 Kg | 0.7 Kg (net) | 0.7 Kg (net) |
NOTICE : MODBUS POLLING INTERVALS
Setting the modbus polling interval can be complex. If the polling interval is too fast and if there are many registers to poll and many PMS on the same modbus line there may not be enough time to complete all of the polling. If you have any questions please contact support and we will be happy to help you.
