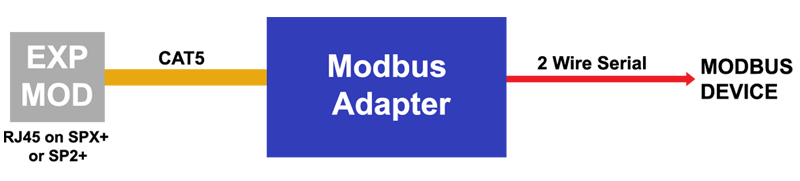

sensorProbeX+ comes equipped with an RS485 Modbus and Expansion port. When using this RJ45 port to connect Modbus appliances, the Modbus to SNMP Adapter makes it easier to connect a 2 wire serial bus cable to the RJ45 port, converting the RJ45 connector into a 3 pin terminal block connection.
Specifications
| Connector | 3 pin phoenix connector : A+, B+, GND |
| Electrical | no galvanic isolation |
| Components | Manufactured using highly integrated, low power surface mount technology to ensure long term reliability. |
| Operating Environment | Temperature : Min. -35° C – Max.80° C Humidity: Min. 20% – Max. 80% (Non-Condensing) |
| Interface | |
| Communications cable | RJ-45 jack to sensor using UTP CAT5e/6 cable |
| Power source | Powered by the controller unit. No additional power needed |
| Power Consumption | Typical 0 mWatt, 0 mA |
| Maximum Cable Length | The Modbus Adaptor can be extended from the RJ-45 Intelligent Sensor ports on the base units up to 1800 feet, or 550 meters using standard CAT5/6 LAN cable |

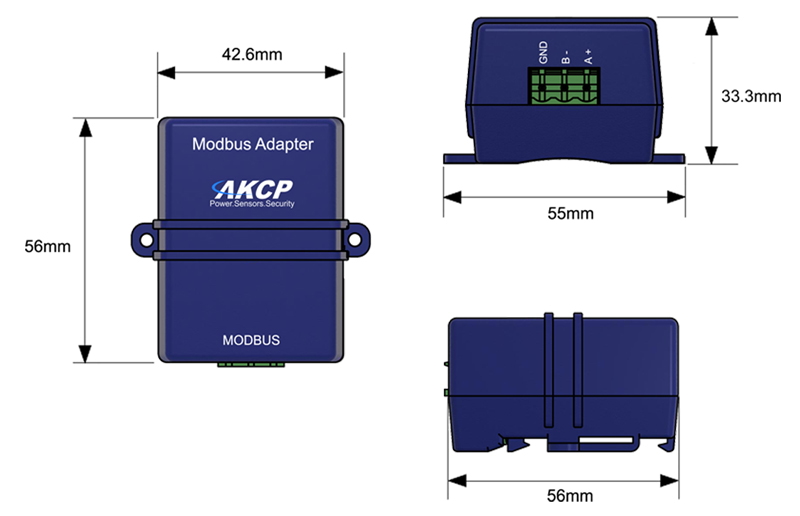

| Dimensions | 56 x 55 x 33.3 mm |
| Mounting | DIN rail mounting Screw mounting |
