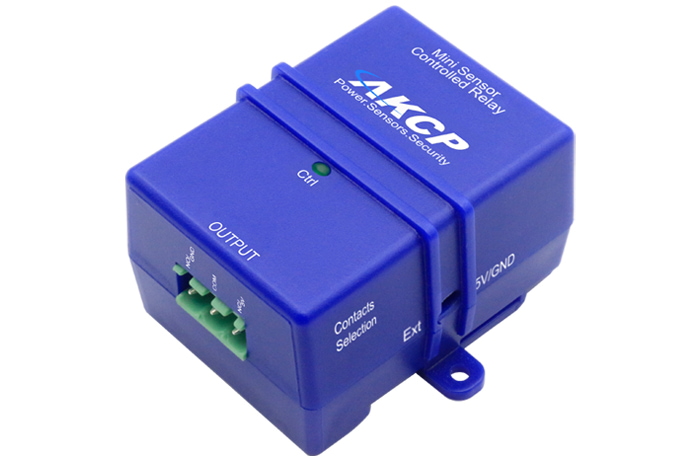

If you have an equipment with a relay that you would like to switch based on sensor input, this adapter will output 200mA – 5V DC based on a sensors status. Use this smaller relay as to drive the larger relay on your appliance.
Specifications
| Configuration | 2 position switch configurations – 1. 5V and GND contacts (0.2A) – 2. Free contacts |
| Output | 3 pin termninal Block – NO, NC, COM – 5V, GND, COM |
| Free Contact Voltage | 24 VDC, Maximum 30 VDC 120 VAC |
| Relay Ratings | Contact Rating – + Contact Rated Load is 1Amp at 24 VDC + Contact Rated Load is 1Amp at 120 VAC Max. Operating Voltage 30 VDC, 120 VAC Max. Operating Current 1 Amp Max. Switched Power: 24W / 120VA. |
| Status Indication | LED indication for Relay active state |
| Operating Temperature | -40°C to 80°C |
| Storage Temperature | -40°C to 80°C |
| Endurance | Max. Switching Rate: + 300ops./ min. (no load). + 30ops./ min. (rated load). Expected Mechanical Life: 5 million ops (no load). Expected Electrical Life: 100,000 ops (rated load). Minimum Load: 1mA @ 1VDC. |
| Interface | |
| Communications cable | RJ-45 jack to sensor using UTP CAT5e/6 cable |
| Power source | Powered by the controller unit. No additional power needed |
| Power Consumption | Typical 150 mWatt, 30 mA |
| Maximum Cable Length | The Sensor Controlled Relay can be extended from the RJ-45 Intelligent Sensor ports on the base units up to 100 feet, or 30 meters using standard CAT5/6 LAN cable |

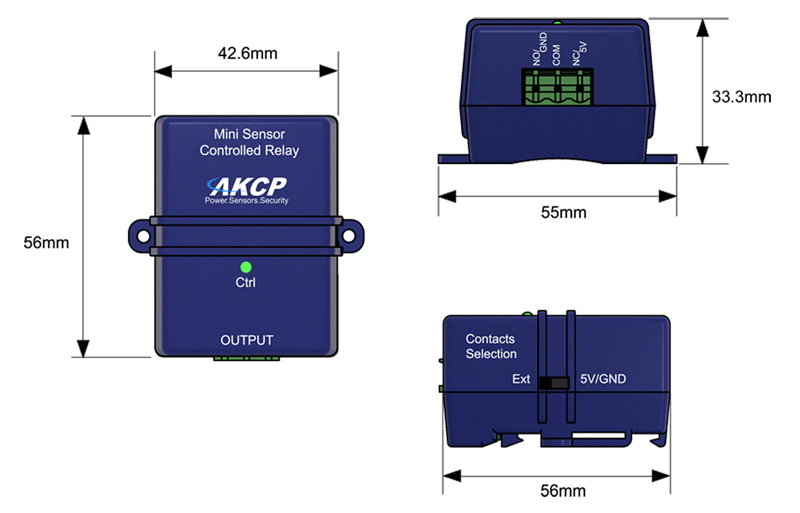

| Dimensions | 56 x 55 x 33.3 mm |
| Mounting | DIN rail mounting Screw mounting |
| Sensor count | 1 |
