The thermocouple adapters are designed to integrate either the AKCP thermocouple, or a third party thermocouple with the securityProbe and sensorProbe+ series of units.
The thermocouple adapters are designed to integrate either the AKCP thermocouple, or a third party thermocouple with the securityProbe and sensorProbe+ series of units. Available in either J or K type adapter it subscribes to the industry standard for thermocouples.
Thermocouples are typically used in heavy industry and cryogenics fields due to their accuracy and resistance to extremes of high and low temperatures. The setup is straightforward. Plug your thermocouple into the adapter, and then connect the adapter to an intelligent sensor port on the securityProbe or sensorProbe+ base unit.
A free 5ft CAT5 cable is supplied for you to do this. Once connected the securityProbe or sensorProbe+ recognizes the thermocouple automatically and configures the unit. All the user needs to do is set the thresholds for high and low warning and critical levels.
Specifications
-200°C to +900°C-330°F to 1650°FJ Type :-40°C to +750°C-40°F to 1382°F0.1°C increments0.2°F incrementssecurityProbe series0.5ºC increments0.9ºF increments±5°C±9°F
| Temperature | |
| Measurement Range | |
| Measurement Resolution | |
| Measurement Accuracy | |
| Interface | |
| Communications cable | RJ-45 jack to sensor using UTP CAT5e/6 cable Plugs directly into the AKCP J or K type thermocouple adapter |
| Power source | Powered by the base units. No additional power needed |
| Power Consumption | |
| Maximum Cable Length | Run length is 100 feet (30 meters) with approved low capacitance shielded cable or UTP |
| Sensor Connector | |
| Dimensions | 56 x 55 x 33.3 mm |
| Sensor count | 1 |
Features
Typical applications
K type thermocouple

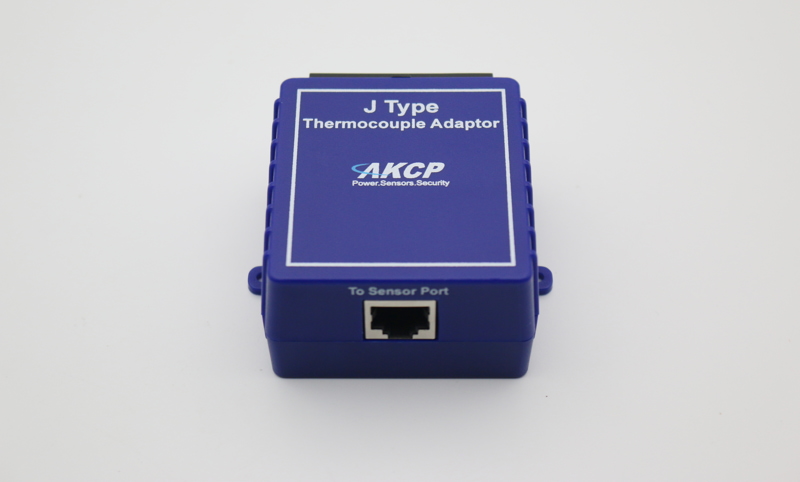

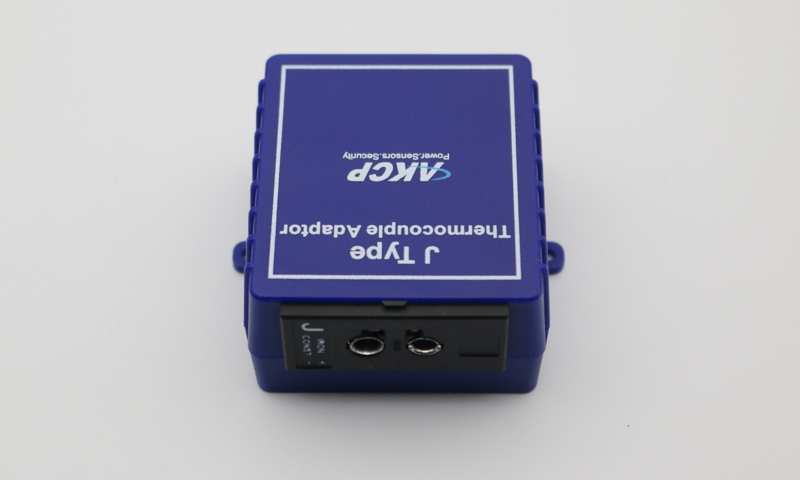

J type thermocouple
