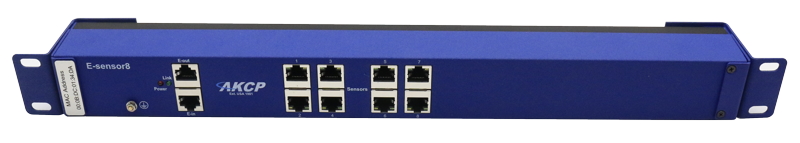

The E-sensor8 is an expansion module that has 8 RJ-45 intelligent sensor ports and is connected to any of the RJ-45 expansion ports located on the front panel of the securityProbe and sensorProbeX+ or sensorProbe2+E base units.
The E-sensor8 is an expansion module that has 8 RJ-45 intelligent sensor ports and is connected to any of the 4 RJ-45 expansion ports located on the front panel of the securityProbe 5E base units. They are connected using standard CAT5 LAN cable.
The E-Sensor8 may also be daisy chained using the E-Out/E-In ports on other expansion boards.
Complete Connectivity
Any sensor within AKCP’s complete line of intelligent sensors can be connected to the intelligent sensor ports which are located on the rear of the unit. 16 LED’s on the front provide each sensors visual condition, 8x red for status and 8x green for online.
The expansion boards can be daisy chained together using the units input, or E-in and output, E-out port. These also are RJ-45 ports and use standard CAT5 cable.
These E-Boards can be extended from the securityProbe 5Es base unit or from each other up to 300 meters, or roughly 1000 feet.
Specifications
| Dimension | Size 8.5″ x 5.43″ x 1.80″ Weight 0.8 Kg |
| Expansion Port | 2x RJ-45 Expansion Ports 115.2K bps Data Transfer Rate |
| Mounting | 1U Rack Mount Standard Rack mount brackets included Compatible with AKCP’s DIN and rack mount trays |
| Power | External 5.5 VDC 3A Power Adapter Input Voltage and Current ratings : 100V~240V – 1A Typical 5.025 Watt, 0.67A |
| Status Indication | LED indication for power LED for Expansion port connectivity LED for sensor online and threshold status |
| Components | Manufactured using highly integrated,low power surface mount technology to ensure long term reliability. |
| Operating Environment | Temp : Min. -35° C – Max. +55° C Humidity : Min. 20% – Max. 80% (Non-Condensing) |
| MTBF | 400,000 Hours |
| Inputs | 8x RJ-45 ports for connecting AKCP sensors 1x RJ-45 expansion module input (E-in) |
| Outputs | Configurable output signals (0VDC/5VDC) on any of the 8 RJ-45 sensor ports 1 RJ-45 expansion module output (E-out) |
| E-Modules | * Daisy chain multiple E-modules including E-sensor8 and E-opto16 combined * Uses standard RJ-45 connections and CAT5 LAN cable * Maximum extension cable run length: 300 meters (1000 feet) * Compatible with AKCP intelligent sensors, except for smart sensors for SP+ only and TMP NIST2/3 * Connect up to 500 AKCP intelligent sensors to one securityProbe5ES * Connect up to 150 AKCP intelligent sensors to one sensorProbe+ (up to 4 expansion units) |
Daisy Chainable

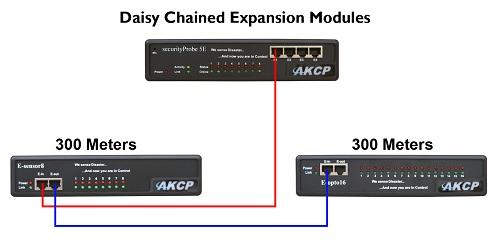

The E-Sensor8 may also be daisychained using the E-Out / E-In Ports on other expansion boards.
The E-modules can be extended up to 300 meters from the securityProbe 5E base unit. There is no limit to how many E-modules can be connected to a single securityProbe 5E. It depends only on the number of sensors connected. A maximum of 600 data points can be monitored by the securityProbe 5E base unit.
OID’s for checking the Expansion Boards and securityProbe 5E
The OID will start with .1.3.6.1.4.1.3854.2 for checking the sensors on the expansion modules including the E-Sensor8.
This SNMPwalk command .1.3.6.1.4.1.3854.2.3.1.1 can be used for checking all of the sensors on the securityProbe 5E.
This SNMPwalk command .1.3.6.1.4.1.3854.2.2.1.1 can be used for returning the status of the expansion modules.
