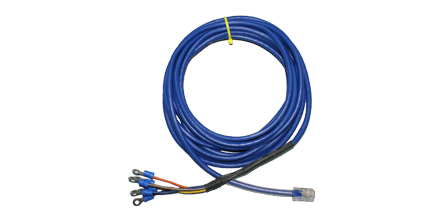

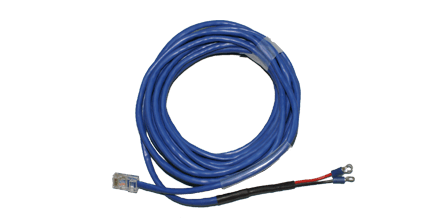

Dry Contact Sensors

The Dry Contact sensor is a simple connection to burglar alarms, fire alarms, or any application that requires monitoring by the sensorProbe. Dry contact sensors are user-definable and can be used to detect many different inputs such as UPS status, security systems, air conditioning status.

These general-purpose switches can be either input or output. When used as an output it can source up to 20 amps. You can select the output voltage by setting the Output Level to a Low or a High. When set to Low the pin will output 0 volts. When set as a High the pin will output 5 volts.

When used as an input a switch will retain any error condition until it is read via SNMP. Therefore if a switch encounters a critical condition at any time it must report that condition before it can return to a normal state.

Input pins can be used to detect whether or not an input switch is open or closed. In combination with external sensors, input pins can detect whether a door or window is open or closed if there is a water incursion, and many other conditions.

Specifications
